Our Products

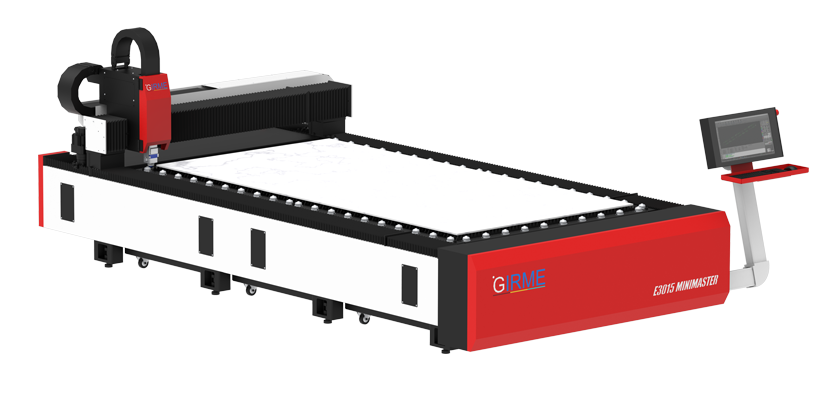

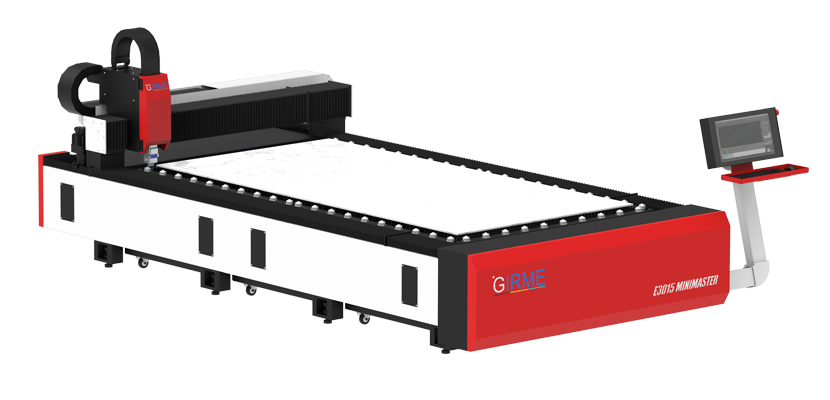

E3015 MiniMaster - Fiber Laser Cutting Machines

01 projects
E 3015 MINIMASTER SPECIFICATIONS
TECHNICAL PARAMETERS
PARAMETERS UNIT E 3015 MINIMASTER
Working Area mm 3050 x 1550
Laser Power kW 1 / 1.5 / 2 / 3
X / Y axis positioning accuracy mm ±0.05
X / Y axis repositioning accuracy mm ±0.03
Max Speed m / min 60 / 80
Max Acceleration G 0.8 / 1.0

Open Canopy (Single Pallet / Pallet Changer) - Fiber Laser Cutting Machines

01 projects
OPEN CANOPY SPECIFICATIONS
TECHNICAL PARAMETERS
UNIT VARIANT
PARAMETERS GT 3015 GT 4020 GT 6020 GT 6525 GT 8030
Working Area mm 3050 x 1550 4050 x 2050 6050 x 2050 6550 x 2550 8050 x 3050
Laser Power kW 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 10 / 12
X / Y axis positioning accuracy mm ±0.05
X / Y axis repositioning accuracy mm ±0.03
Max Speed m / min 60 / 80 / 100 / 120 / 150
Max Acceleration G 0.8 / 1.0 / 1.2 / 1.5

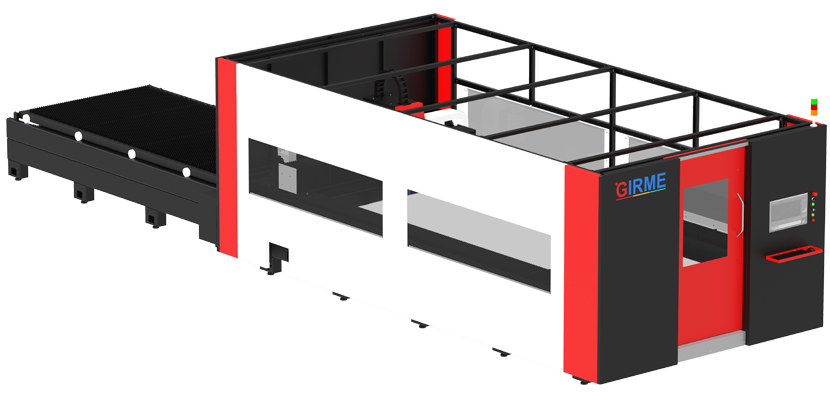

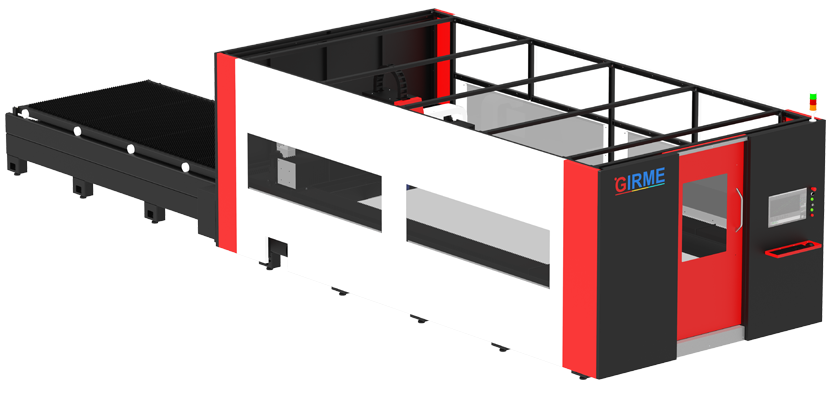

Closed Canopy (Single Pallet / Pallet Changer) - Fiber Laser Cutting Machines

01 projects
CLOSED CANOPY SPECIFICATIONS
TECHNICAL PARAMETERS
UNIT VARIANT
PARAMETERS GT 3015 GT 4020 GT 6020 GT 6525 GT 8030
Working Area mm 3050 x 1550 4050 x 2050 6050 x 2050 6550 x 2550 8050 x 3050
Laser Power kW 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 10 / 12
X / Y axis positioning accuracy mm ±0.05
X / Y axis repositioning accuracy mm ±0.03
Max Speed m / min 60 / 80 / 100 / 120 / 150
Max Acceleration G 0.8 / 1.0 / 1.2 / 1.5
