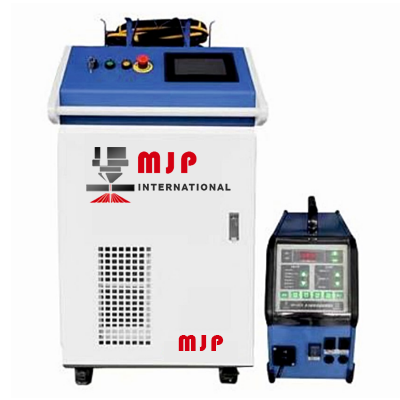

Laser Welding can achieve self –melting welding of the mother material, without the need for base metal. Can achieve deeper pentration and strong welding strength, The surface of the weld is bright and smooth, no need for subsequent grinding. Small heat input, minimal thermal deformation. Can be welded to variety of different materials, carbon steel, stainless Steel, aluminum alloy Etc.Various connection forms: docking, lap joint, corner joint, flanging connection
| Specification | |
|---|---|
| Power | 1kw/1.5kw/2kw |
| Laser Type | Fiber Laser |
| Max Output Energy | 1kw/1.5kw/2kw |
| Max Output Energy | 1080nm |
| Modulation Frequency | 1-20khz |
| Red Light Indicates Output Power | 0.5 – 1 |
| Fiber Cable Length | 10m |
| Fiber Core Diameter | 50um |
| Total Power Consumption | 7.5 kw(1kw laser Source) 8.5 kw(1.5 kw laser Source) 10 kw (2kw laser source) |
| Rated Power | 220 V AC 50Hz(1kw/1.5kw) 380 V AC 50Hz(2kw) |
| Cooling Method | Water cooling |
| Gross Weight | 270 kg |
| Machine Dimention (L * W * H) | 625 * 1090 *1746 mm |
